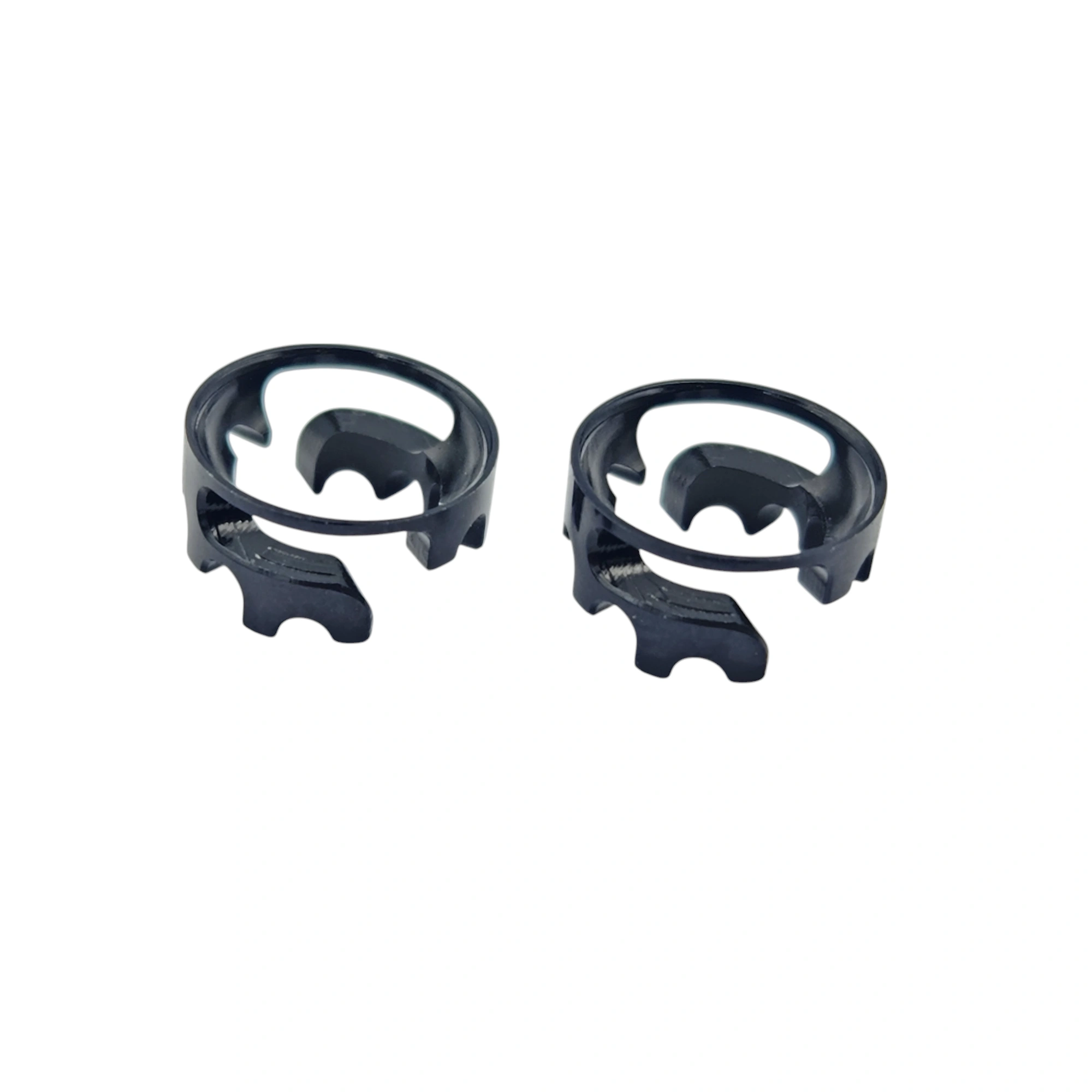

Introducing our brand new 7075 Ultra-Lite Body Height Adjusters for Touring Cars!
Featuring a simple and innovative design, these super lightweight adjusters make it easier than ever to fine tune the height of the body-shell, without having to remove any pins, clips or o-rings. The adjusters feature 5 different height settings at 0.75mm increments (3.75mm of movement). They slide over the body post and locate on a 1.5mm pin. The assembly is then held in place by an o-ring which is slightly recessed into the top of the adjuster.
To adjust the height, simply slide the adjuster and o-ring up, rotate it to a different slot and seat it back down, pushing the o-ring down to hold the assembly in place. The o-ring also provides a cushion for your body to prevent flex interruption and helps prevent damage to the body hole and paint.
The adjuster can also be used on horizontal rear posts, and with our HRP System. This provides the body the perfect stopper to prevent excessive movement in the rear or damage when hit from behind.
The adjusters are super light-weight coming in at only 0.25g each to keep your CG as low as possible.
They fit all popular touring cars with a 6mm post (Xray, Awesomatix, Mugen, Yokomo, Schumacher, ARC, Infinity, Destiny etc) you just have to choose the correct ones for your car!
1.5mm Version
- RC MAKER
- Destiny
- Yokomo
- Tamiya
2.0mm Version
- Awesomatix
- Schumacher
- XRAY
- Mugen
- ARC

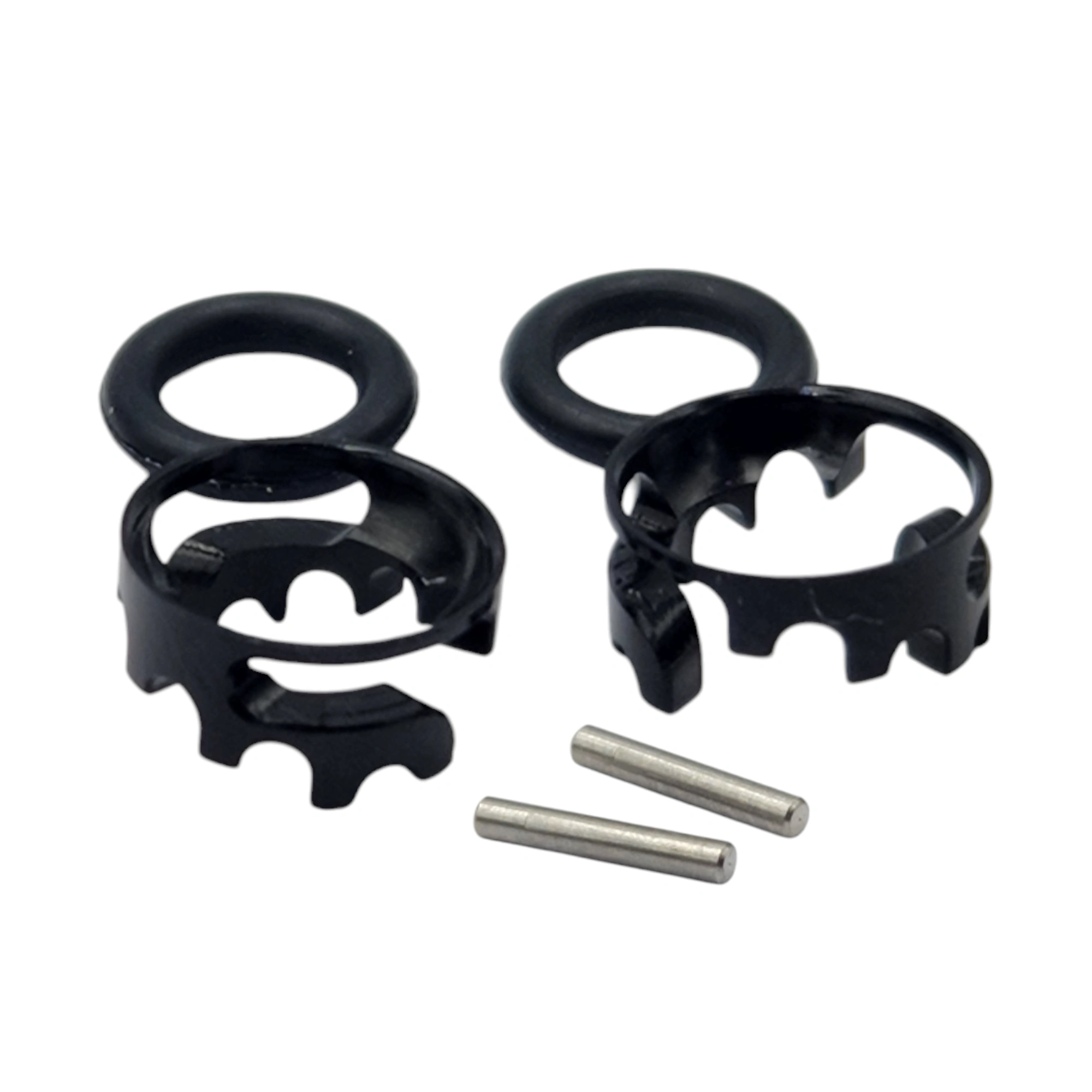

Includes:
2x 7075 Aluminium
2x Pins (1.5mm or 2mm)
2x O-Rings

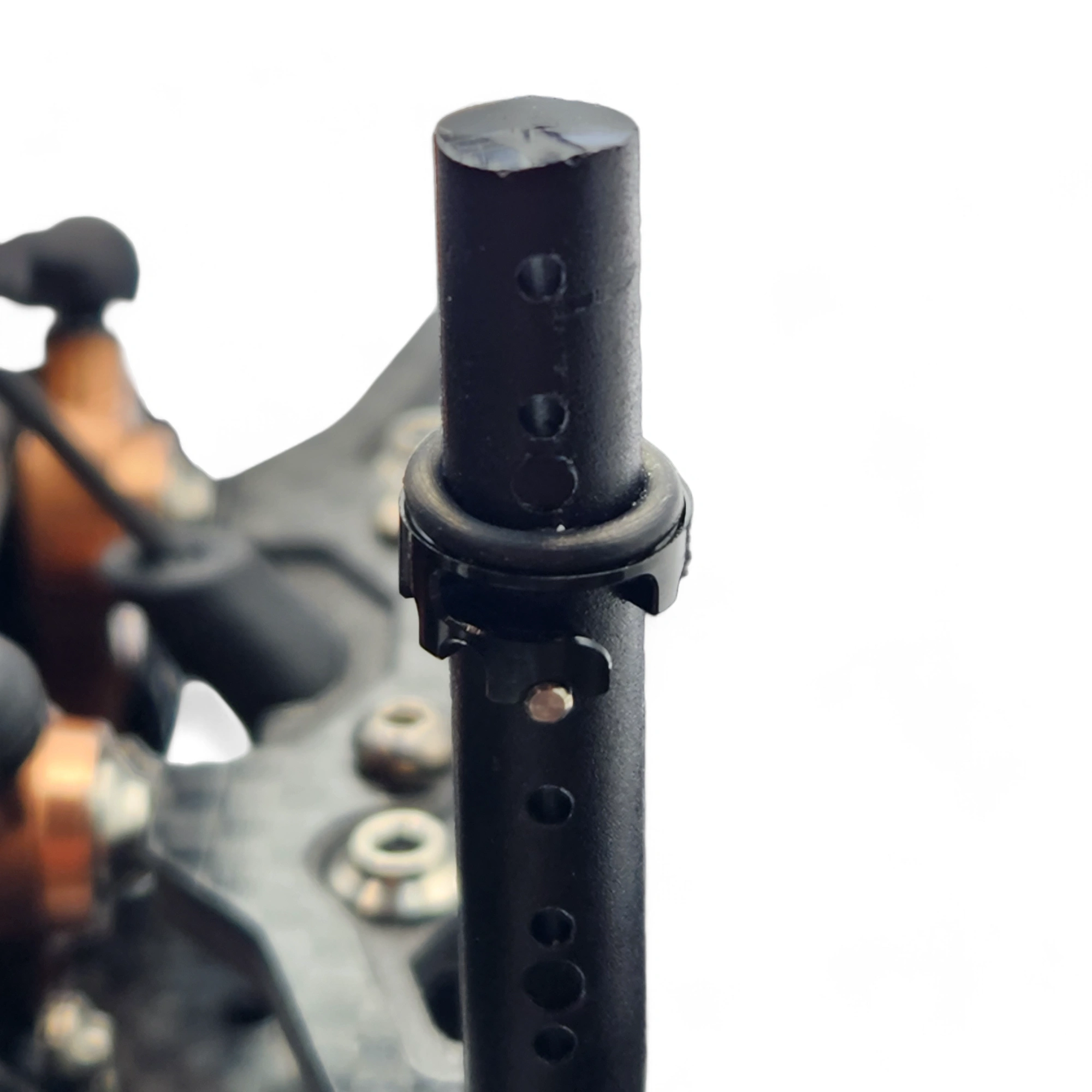

Installation instructions:
- Insert the 1.5mm or 2mm Pin into the correct body post hole. This is usually one hole down if using only a clip, or the same hole if using an existing body height adjuster.
- Slide the body height adjuster over your body post with the pin cutout facing down.
- Install the o-ring and press down firmly to seat it into the carbon adjuster.
- Install body and adjust the holder on the pin as necessary to achieve the optimum height. If the optimum height cannot be achieved, you may need to move the pin to another hole on the body post.
