Introducing our brand new Floating Electronics Weight Plate Set for the XRAY X4!

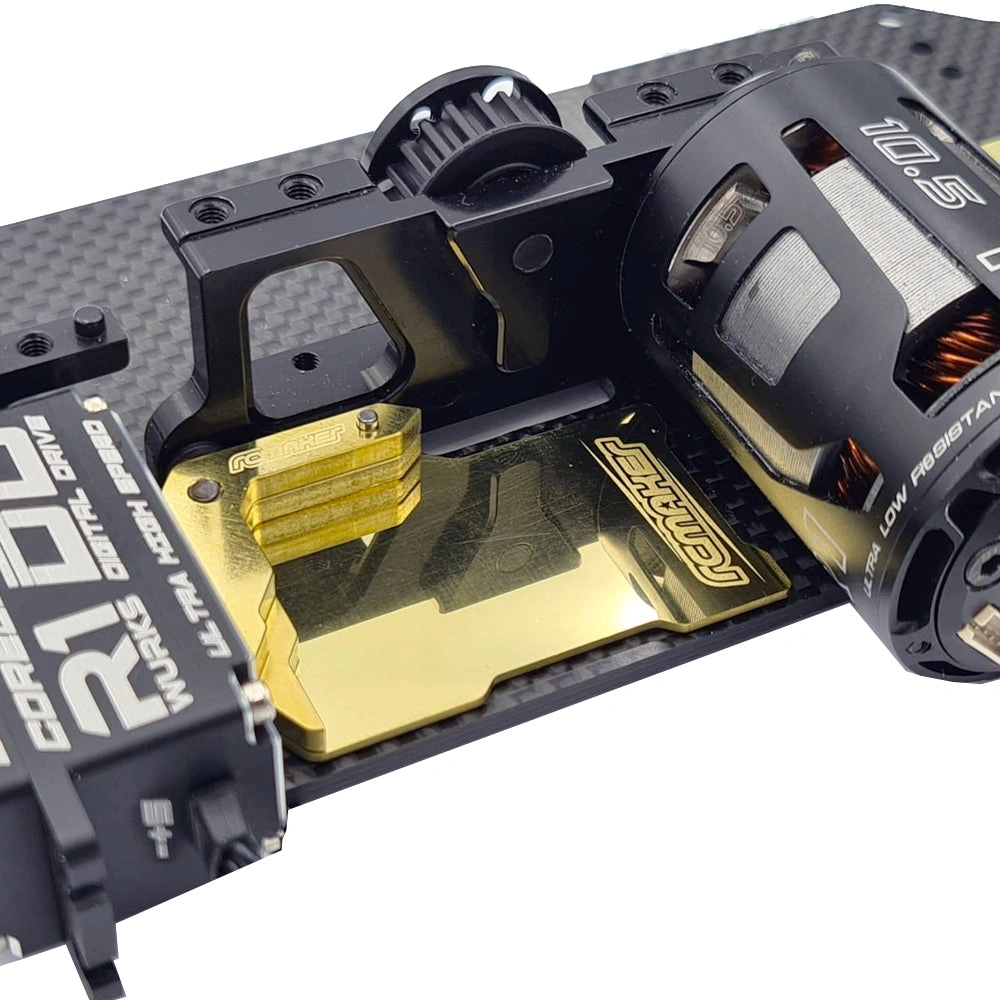

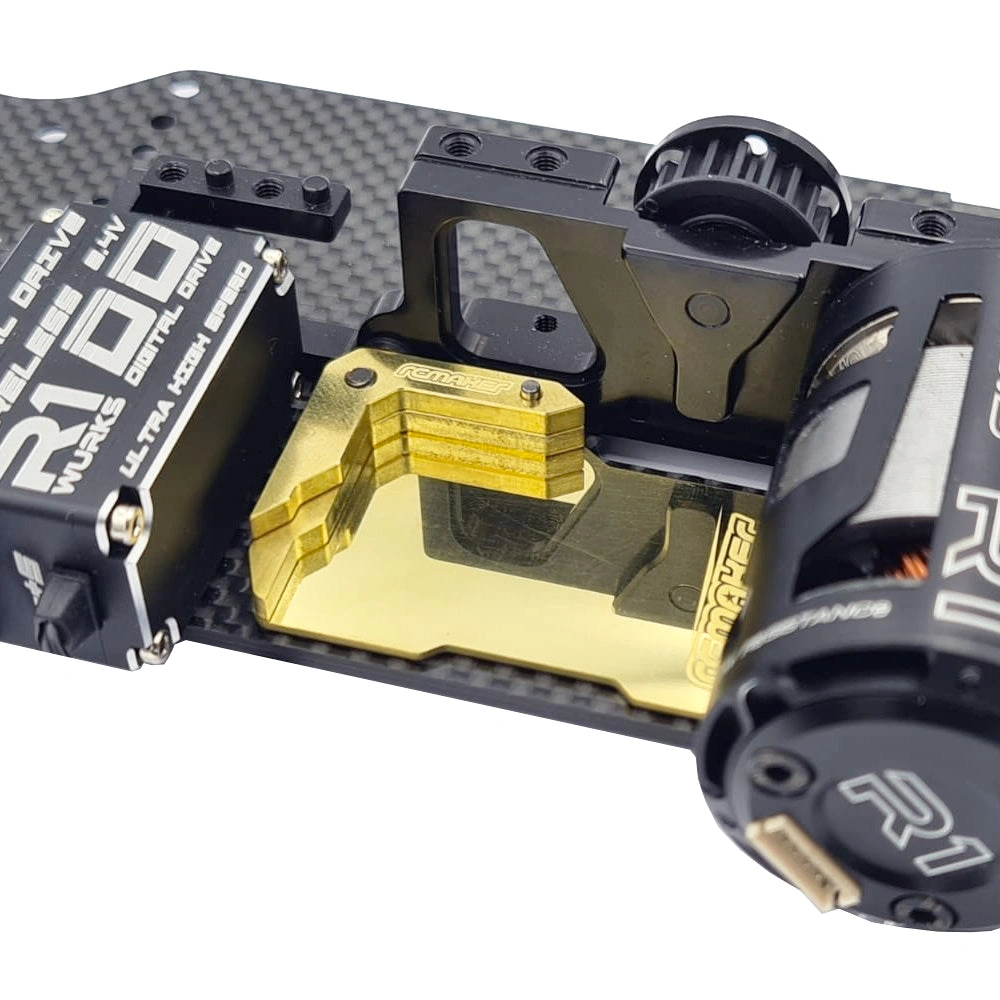

Put your weight where it's needed most, to get your car up to he minimum weight and balanced! The set includes a carbon shim which floats it 0.5mm off the chassis from near to the centre of the car, meaning the plate itself has no impact on the symmetrical flex of the chassis.
On top of the plate, we have 13g of brass weight to secure it in place, which is also adjustable. With the thread in the top weight, we've allowed you to remove the bottom weight and use the top weight only, which brings the weight down from 13g to 5g, just to give you some more options. The plate attaches to the often unused antenna mount hole. If you still want to use this antenna mount, you can use an extra long screw through the lower weight, and thread the antenna mount on-top.

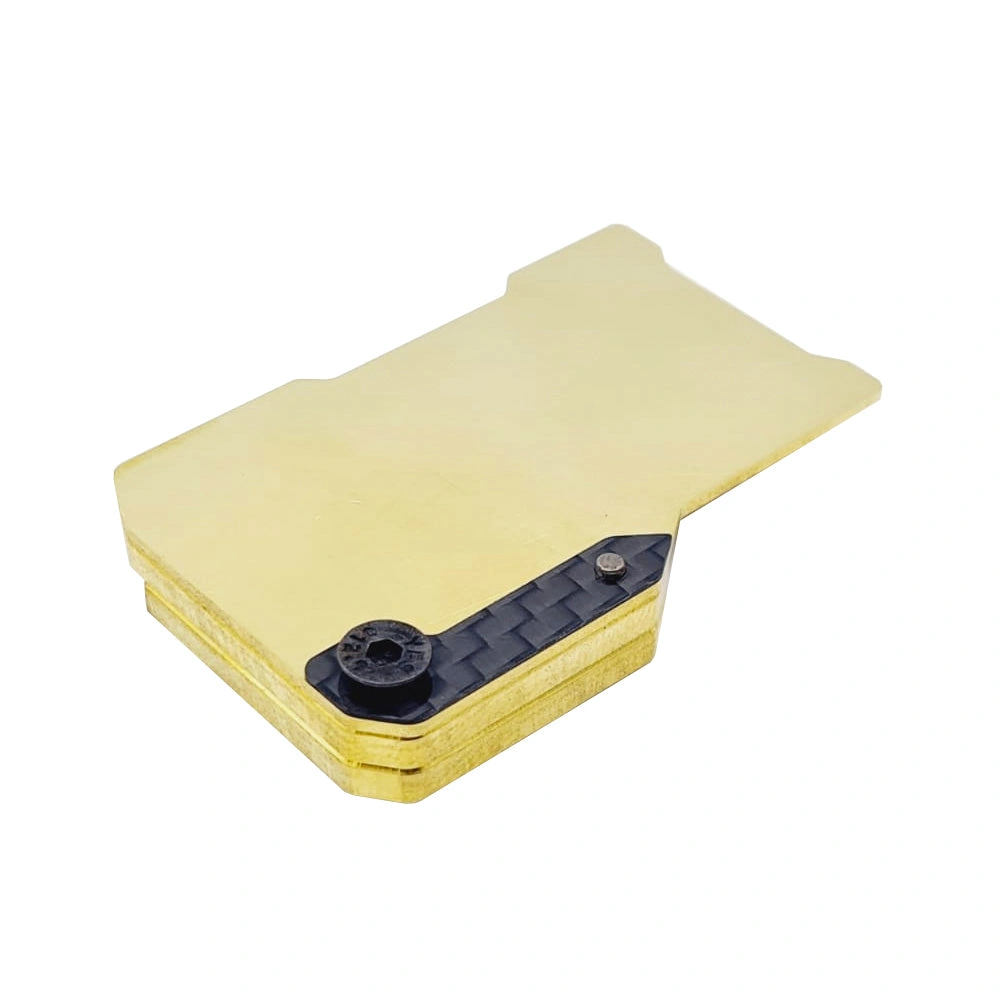

The two weights, plate and shim feature coinciding locating pin holes, where we supply a 2mm Pin that goes through all 4 parts to align them perfectly on your chassis. The pin can either be removed or left in after tightening.
The brass plate itself is 1mm thick and weighs in at 13g. The set coming in at 26g is a brilliant way to meet the limit, balance your car and have no impact on the flex characteristics of the chassis at the same time!

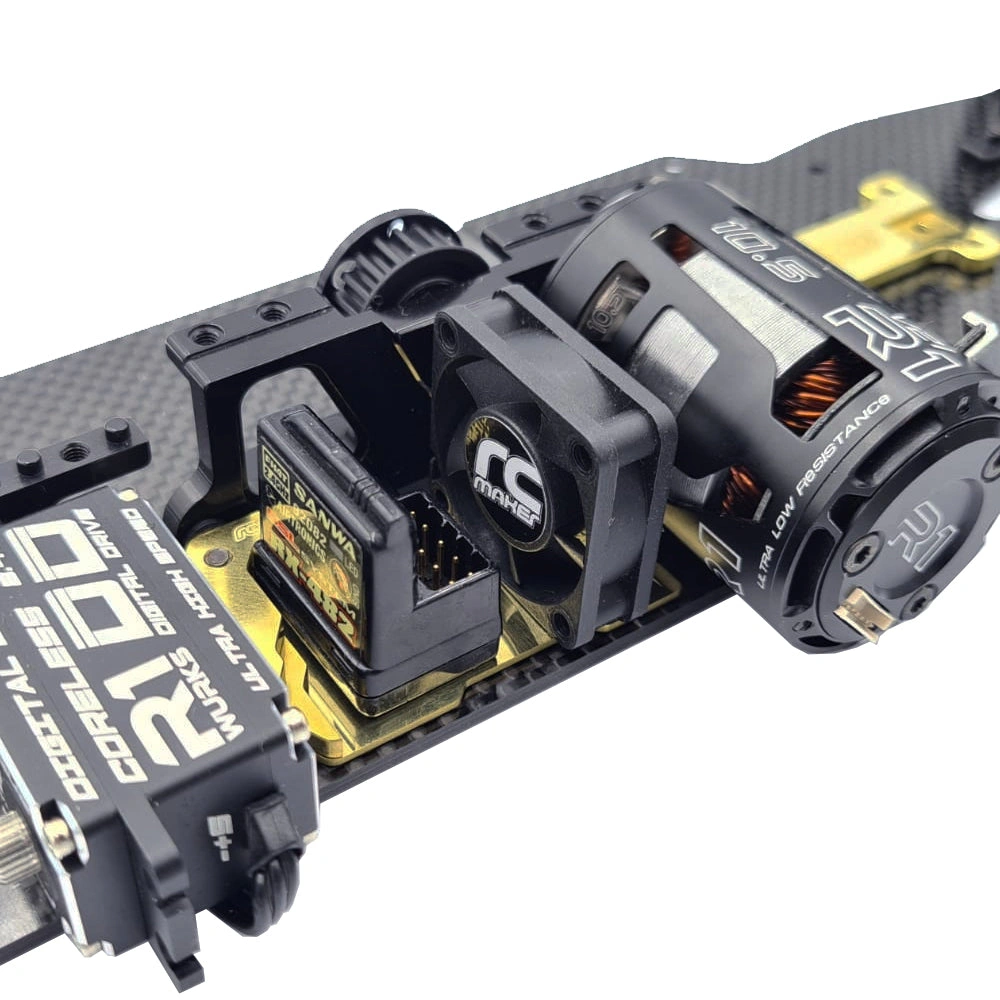

Another great feature of the floating system, is you can change chassis or clean your car, and simply remove your RX, Transponder and Fan by undoing one screw! No more annoying double sided tape. Simply tape your electronics to the plate, and remove or install as you desire!
If you are after more weight for your car, we have a 1.5mm option plate available weighing in at 19g, which can either replace the 1mm plate to bring the overall weight up to 32g, or added to the 1mm plate to make a total of 2.5mm, bringing it all the way up to 44g!
Weights:
- Standard Brass Kit: 25g
- Standard Brass Kit with 1mm Plate replaced with Option 1.5mm Plate: 32g
- Standard Brass Kit with 1.5mm Plate added on top of the standard 1mm Plate: 44g

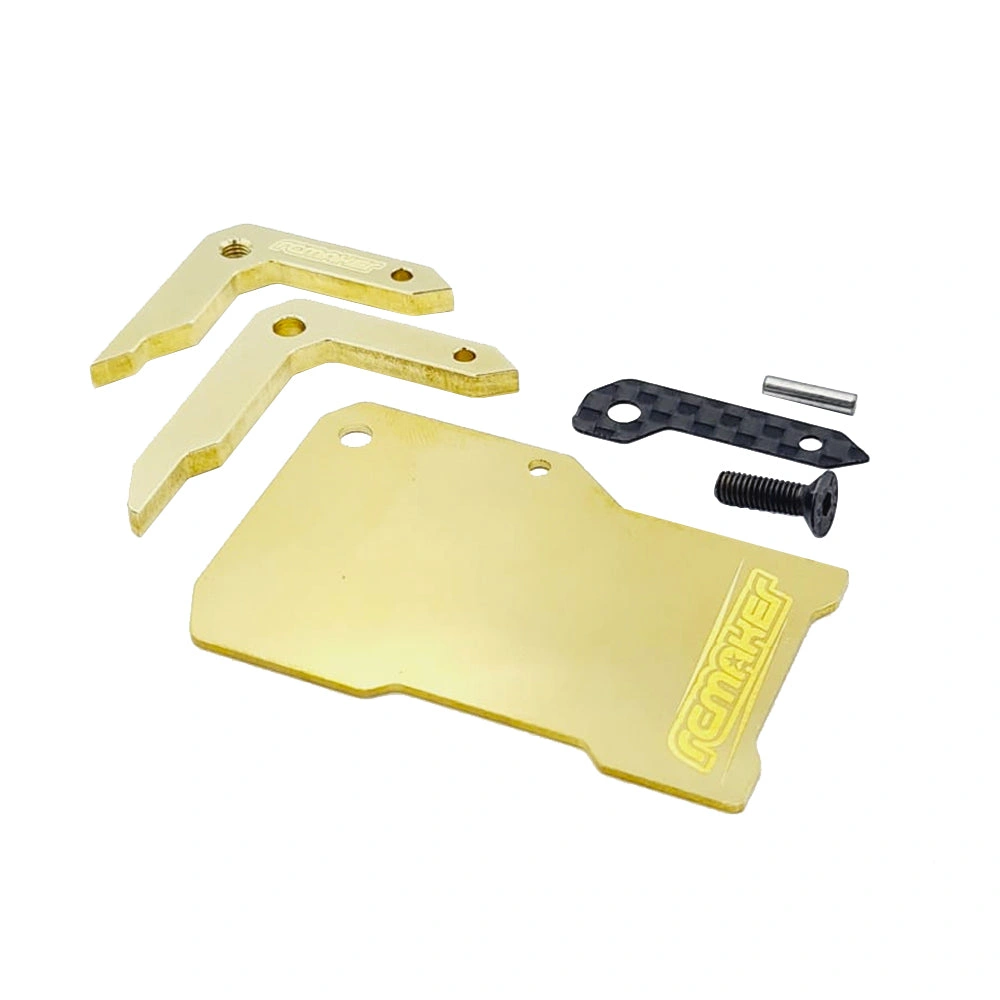

Kit Includes:
- 1x 1mm Weight Plate (13g)
- 2x 3mm Brass Screw on Weights (5g and 8g)
- 1x 0.5mm Floating Plate Shim
- 1x M3x10 Countersunk Steel Screw
19g Option weight plate can be purchased HERE!
If you're after less weight, we have a carbon set available HERE!
